Slotted Rail HD
HTSR HD
Slotted rail channels are used as light duty framing members. Its application extend to supporting plumbing pipe, Ducts and cable trays
Material Specification
Mild Steel
Surface Finish
Pre-Galvanised / Hot Dip Galvanised
Naming Nomenclature
(E.g. HTSR 1.6 HD)
| - HTSR | : Hi-Tech Slotted Rail Channel |
| - 1.6/2.0/2.5 | : Thickness |

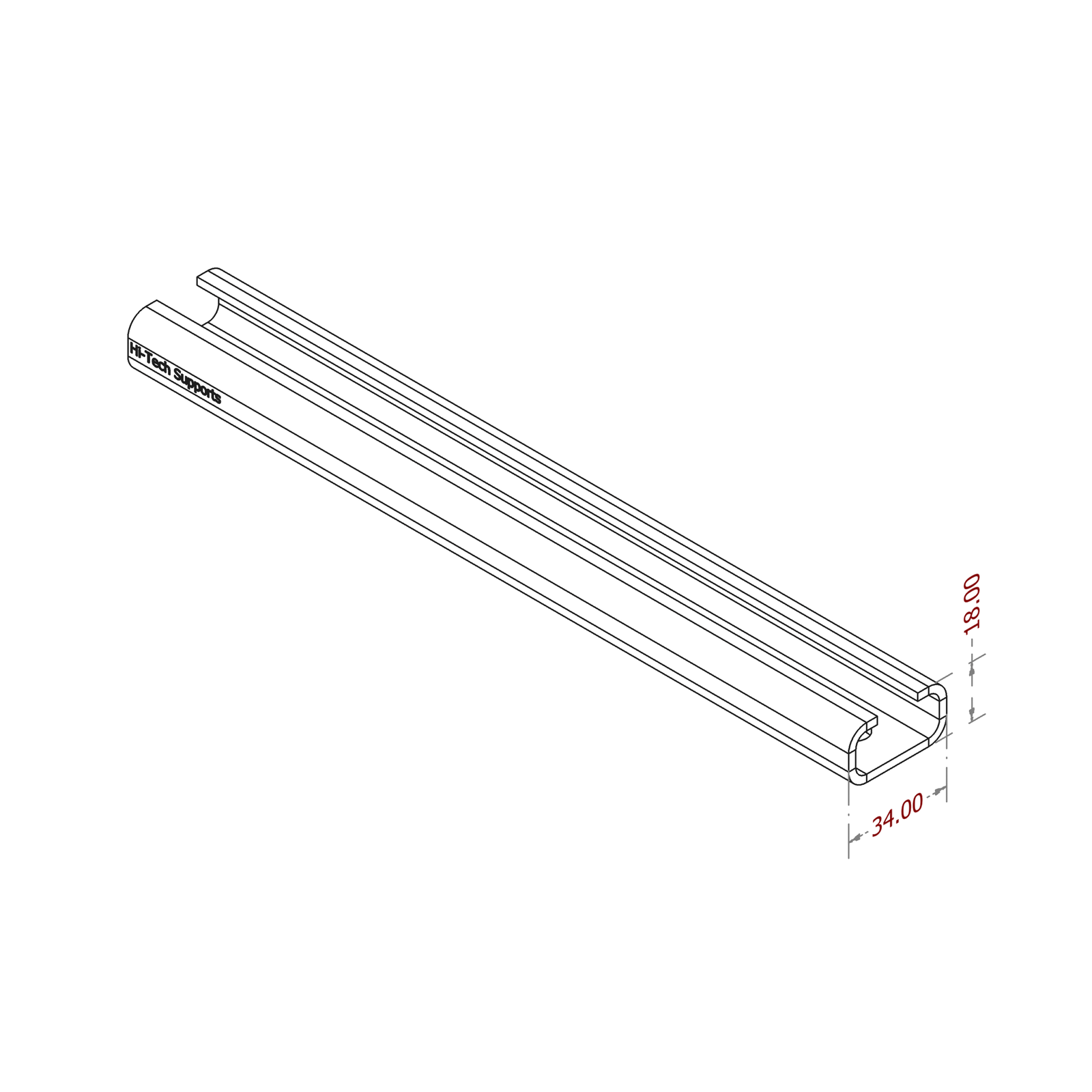

| - HD | : Heavy duty ( 33 width x 18 Height ) |
*plain rails also can be manufactured and supplied on request.
Technical Specifications
| Model | Width | Height | Moment of Inertia x-x | Sectional Modulus |
|---|---|---|---|---|
| mm | mm | mm4 | mm3 | |
| HTSR 1.6 HD | 33 | 18 | 6604.5 | 632.6 |
| HTSR 2.0 HD | 33 | 18 | 8089 | 775.7 |
| HTSR 2.5 HD | 33 | 18 | 10529.6 | 1012.9 |
