Anchor Fastener Rail Leg
HTARL
Anchor Fastener Legs are mainly used for supporting vertical PVC pipes.
Material Specification
Mild Steel
Surface Finish
Electro-Galvanised / Hot Dip Galvanised
Naming Nomenclature
(E.g. HTARL 2.5 30X2.5″Ht)
| - HTARL | : Hi-Tech Anchor Fastener Rail Leg |
| - 2.5 | : Thickness |
| - 30 | : Width |
| - 2.5"Ht | : Side Height |

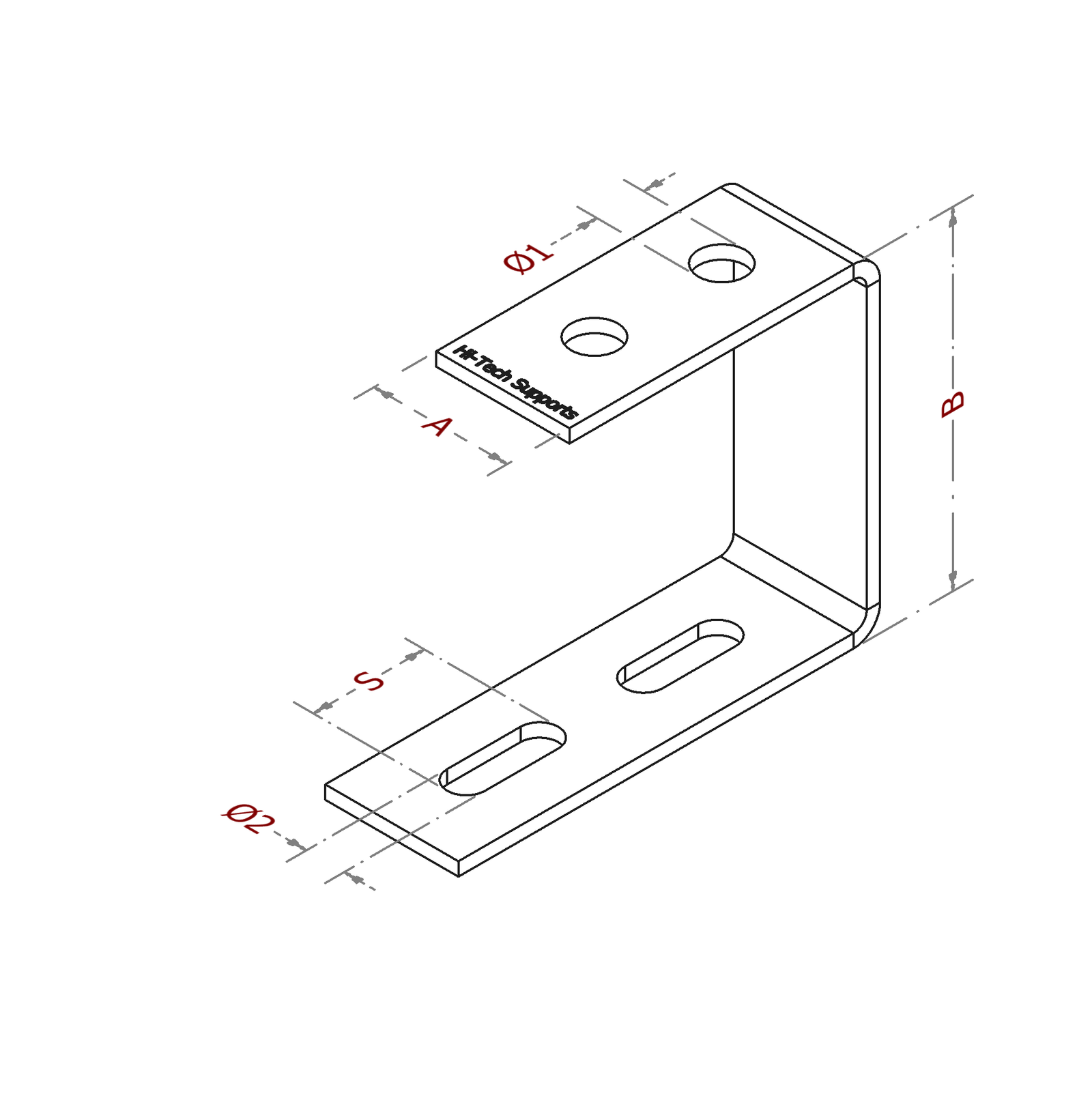

Technical Specifications
| Model | A | B | S | Ø1 | Ø2 |
|---|---|---|---|---|---|
| (mm) | (mm) | (mm) | (mm) | (mm) | |
| HTARL 2.5 30X2.5"Ht | 30 | 65 | 25 | 10 | 8 |
