4 Hole Axis Bracket
HTAXB04

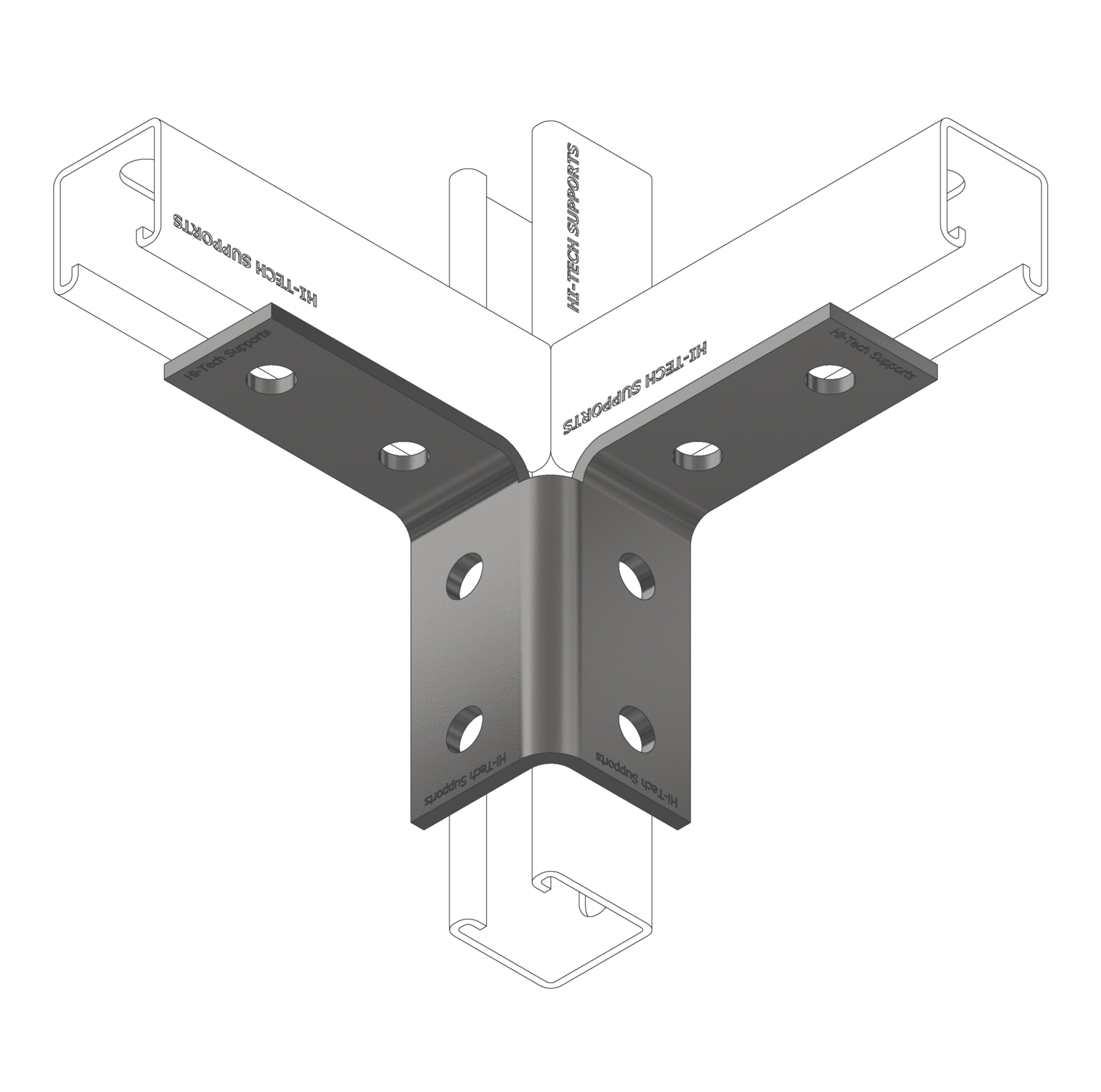

4-Hole Axis Bracket is used for heavy duty applications. Mainly used for connecting three channels which are mutually perpendicular to each other
Material Specification
Mild Steel
Surface Finish
Electro-Galvanised / Hot Dip Galvanised
Naming Nomenclature
(E.g. HTAXB04)
| - HTAXB | : Hi-Tech Axis Bracket |
| - 04 | : 4 Hole |

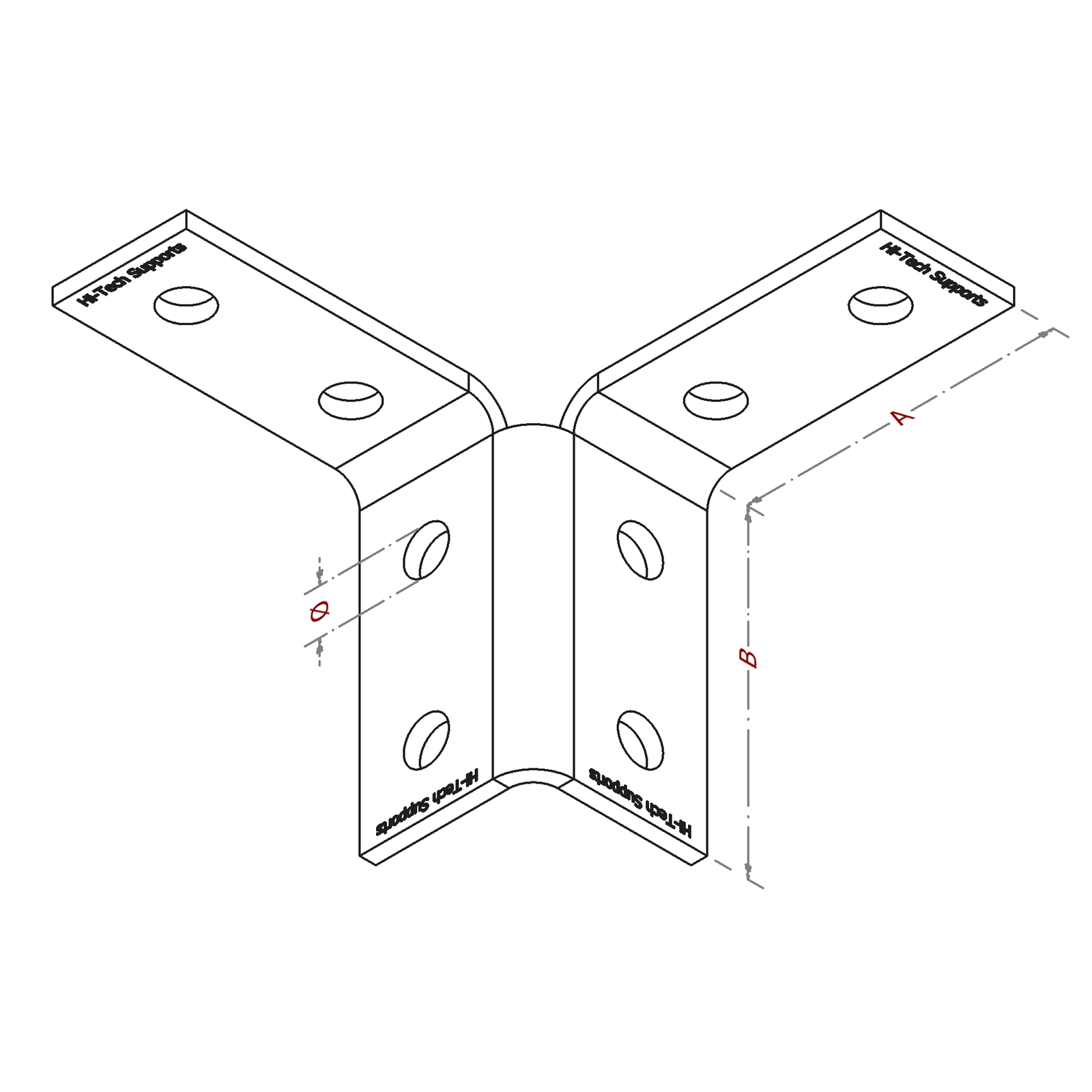

Technical Specifications
| Model No. | A | B | Ø |
|---|---|---|---|
| (mm) | (mm) | (mm) | |
| HTAXB04 | 90 | 100 | 14 |
