4 Hole Angle Bracket
HTAB04
4 Hole Angle Brackets are used to connect next HTST Channels perpendicular to each other. Slip loads and pull out loads are limited to allowable strength of quick nut/spring nut used.
Material Specification
Mild Steel
Surface Finish
Electro-Galvanised / Hot Dip Galvanised
Naming Nomenclature
(E.g. HTAB04)
| - HTAB | : Hi-Tech Angle Bracket |
| - 04 | : 04 Hole |

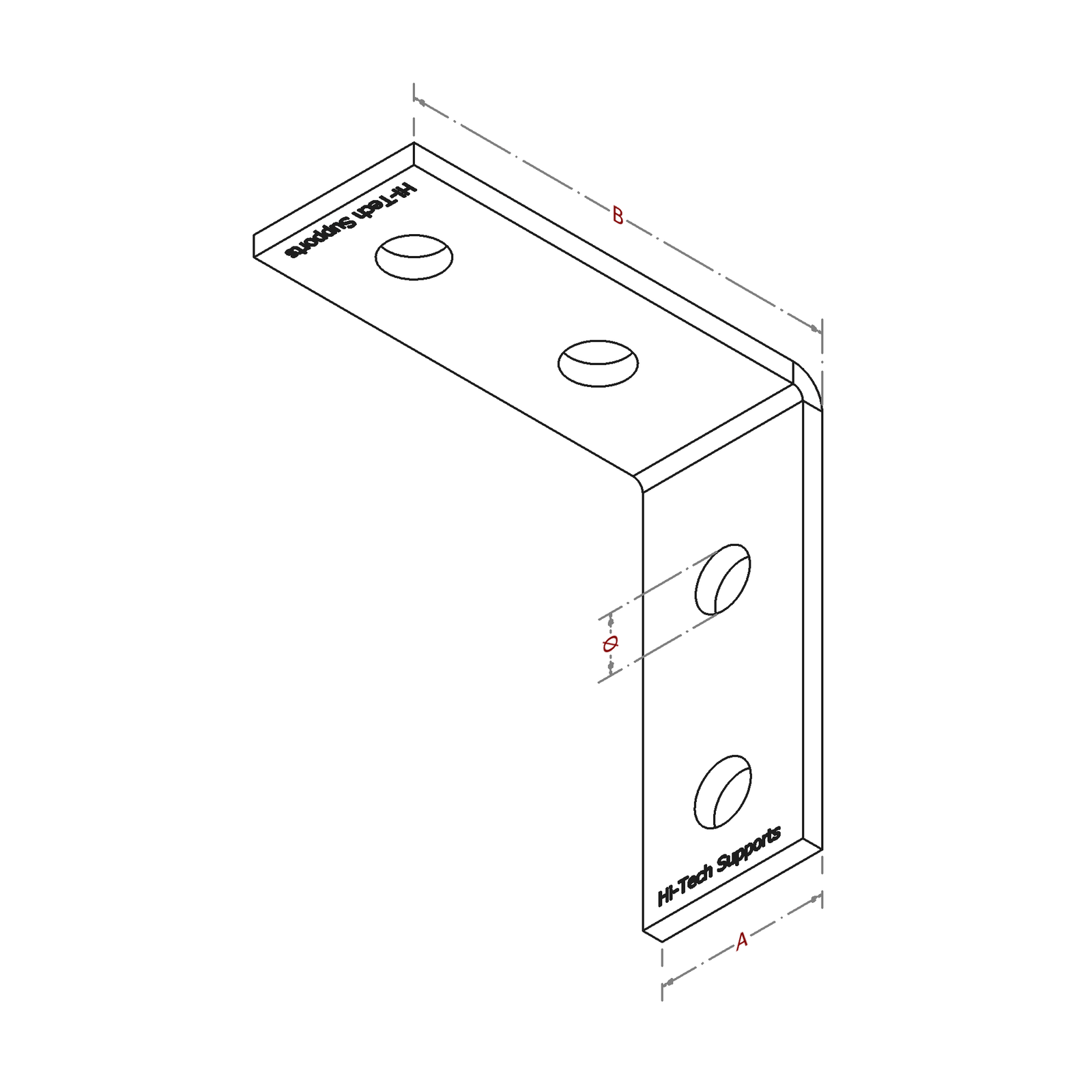

Technical Specifications
| Model No. | A | B | Ø |
|---|---|---|---|
| (mm) | (mm) | (mm) | |
| HTAB04 | 40 | 105 | 14 |
