082 Square U Bracket
HTSUB082

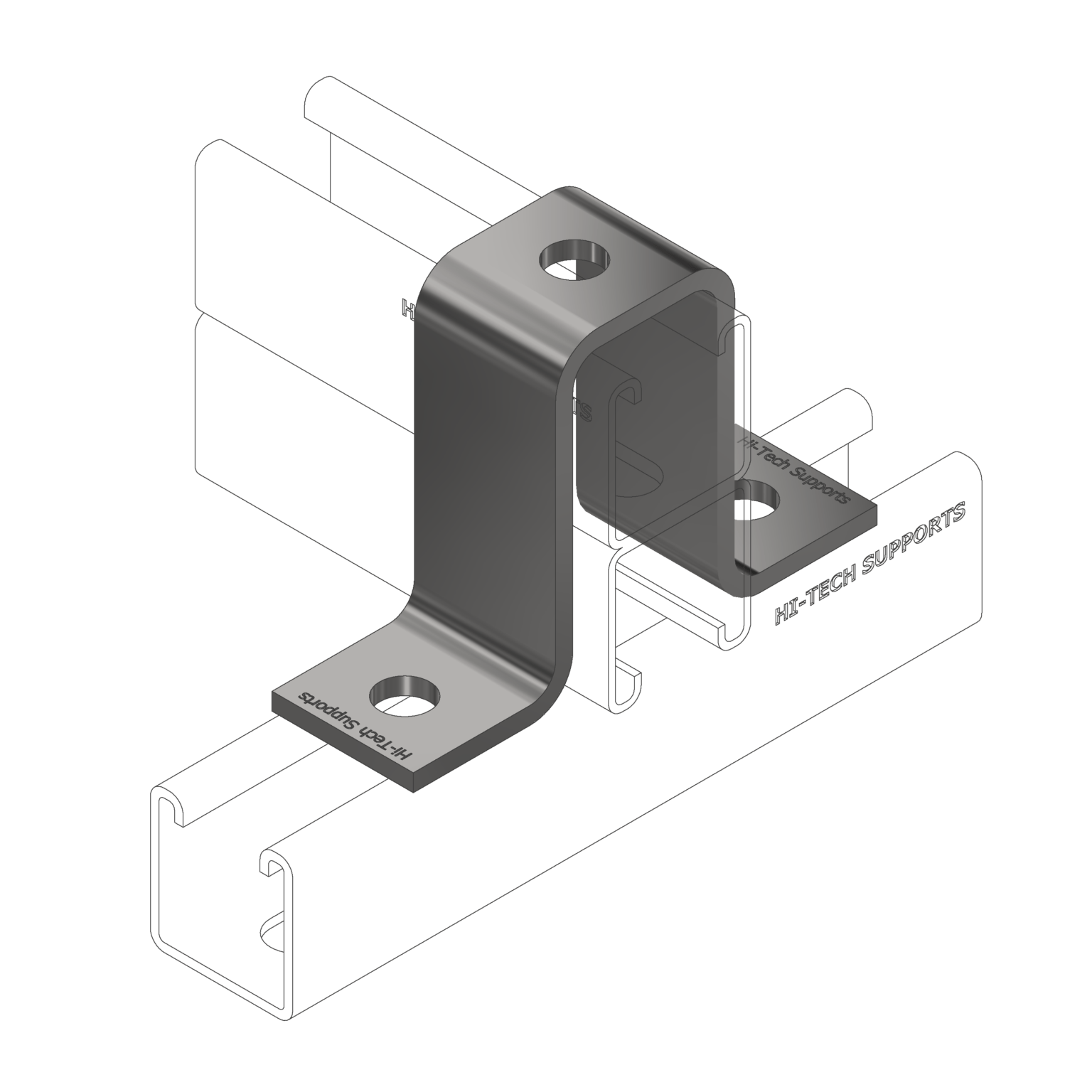

The Square U Bracket is used as a modular arrangement to attach 041 channels.
Material Specification
Mild Steel
Surface Finish
Electro-Galvanised / Hot Dip Galvanised
Naming Nomenclature
(E.g. HTSUB082)
| - HTSUB | : Hi-Tech Square U Bracket |
| - 082 | : Channel Size |

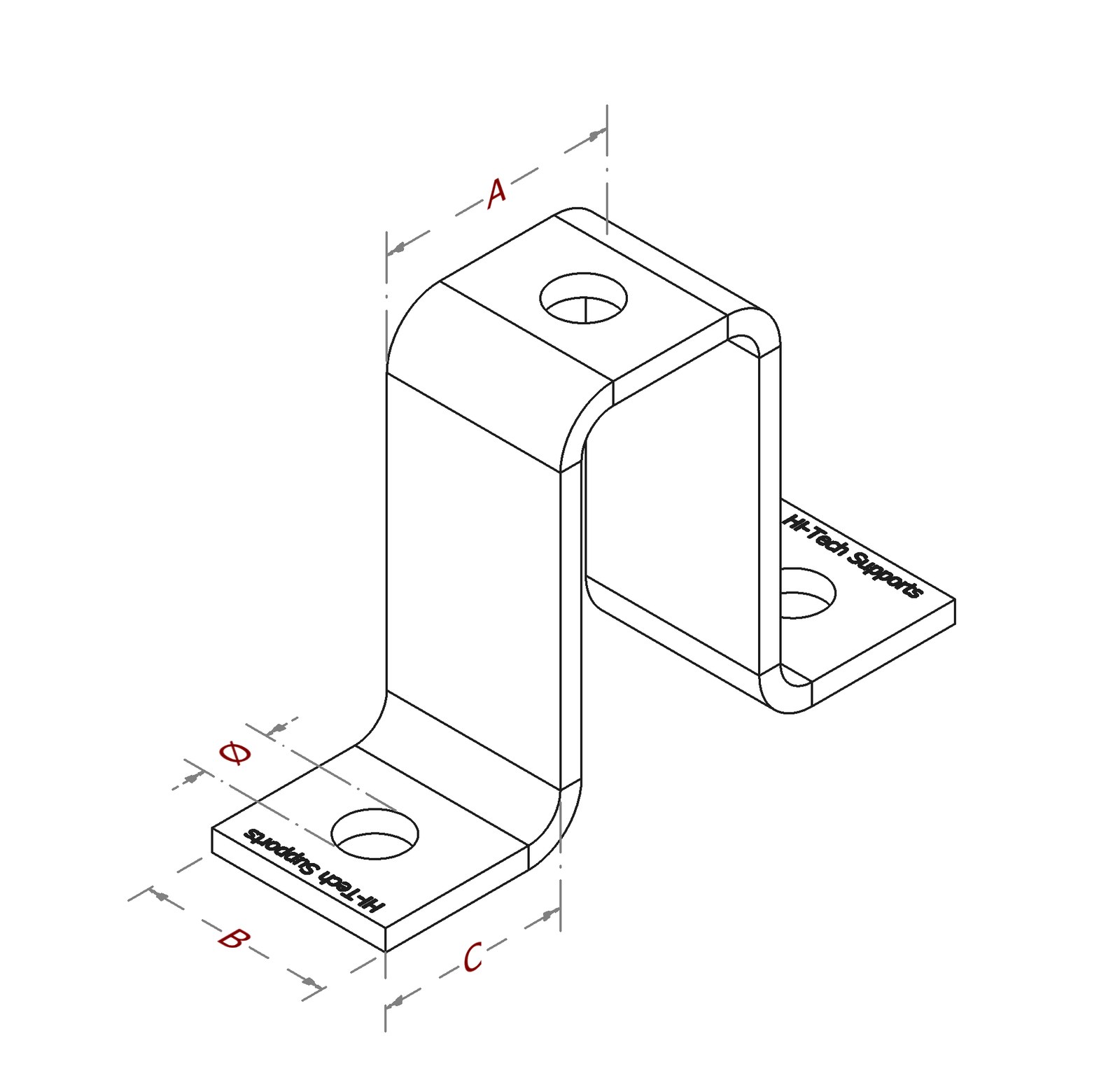

Technical Specifications
| Model No. | A | B | C | Ø |
|---|---|---|---|---|
| (mm) | (mm) | (mm) | (mm) | |
| HTSUB082 | 52 | 40 | 40 | 14 |
