041B Channel Baseplate Cantilever 04 Hole
HTBPCL041B04

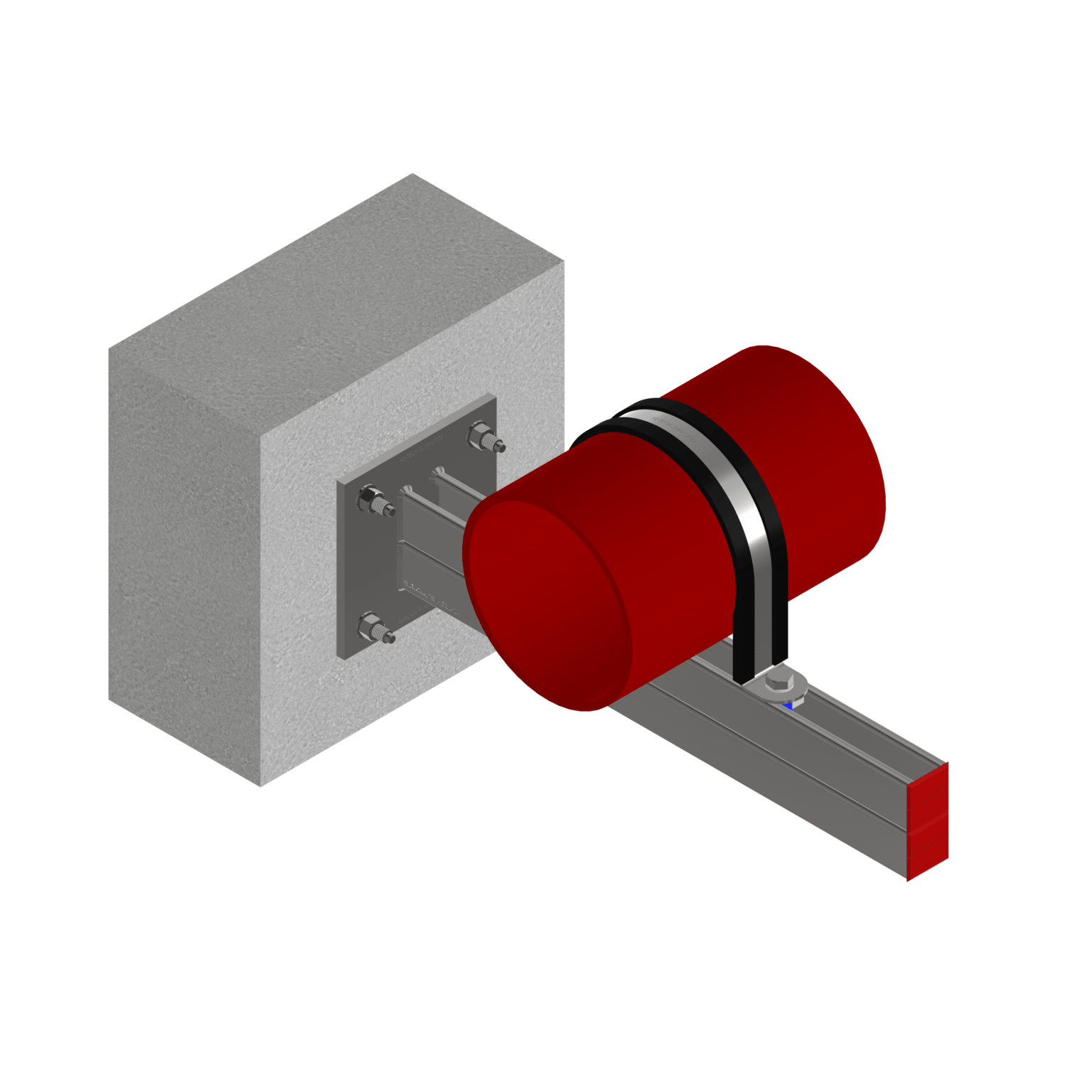

Base Plate Cantilever is a cantilever beam arrangement, used to support services, from a vertical surface or walls
Material Specification
Mild Steel
Surface Finish
Hot Dip Galvanised
Naming Nomenclature
(E.g. HTBPCL041B04)
| - HTBPCL | : Hi-Tech Base Plate Channel Cantilever |
| - 041 | : Channel Size |
| - B | : Back to Back |
| - 04 | : 04 Hole |

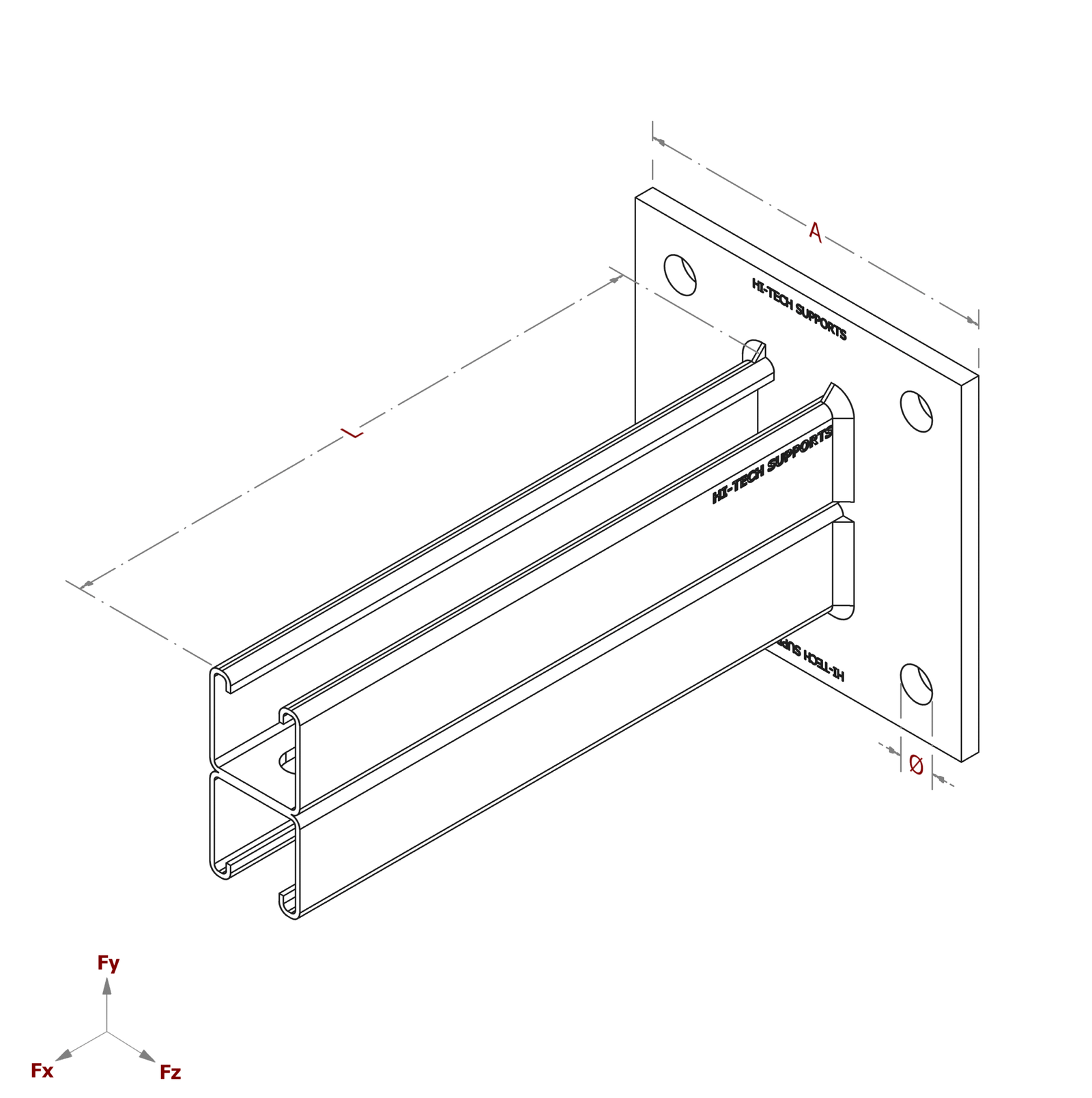

Technical Specifications
| Model No. | A | L | Ø |
|---|---|---|---|
| (mm) | (mm) | (mm) | |
| HTBPCL041B04 | 150 | Varies | 14 |
