041 Square U Bracket
HTSUB041

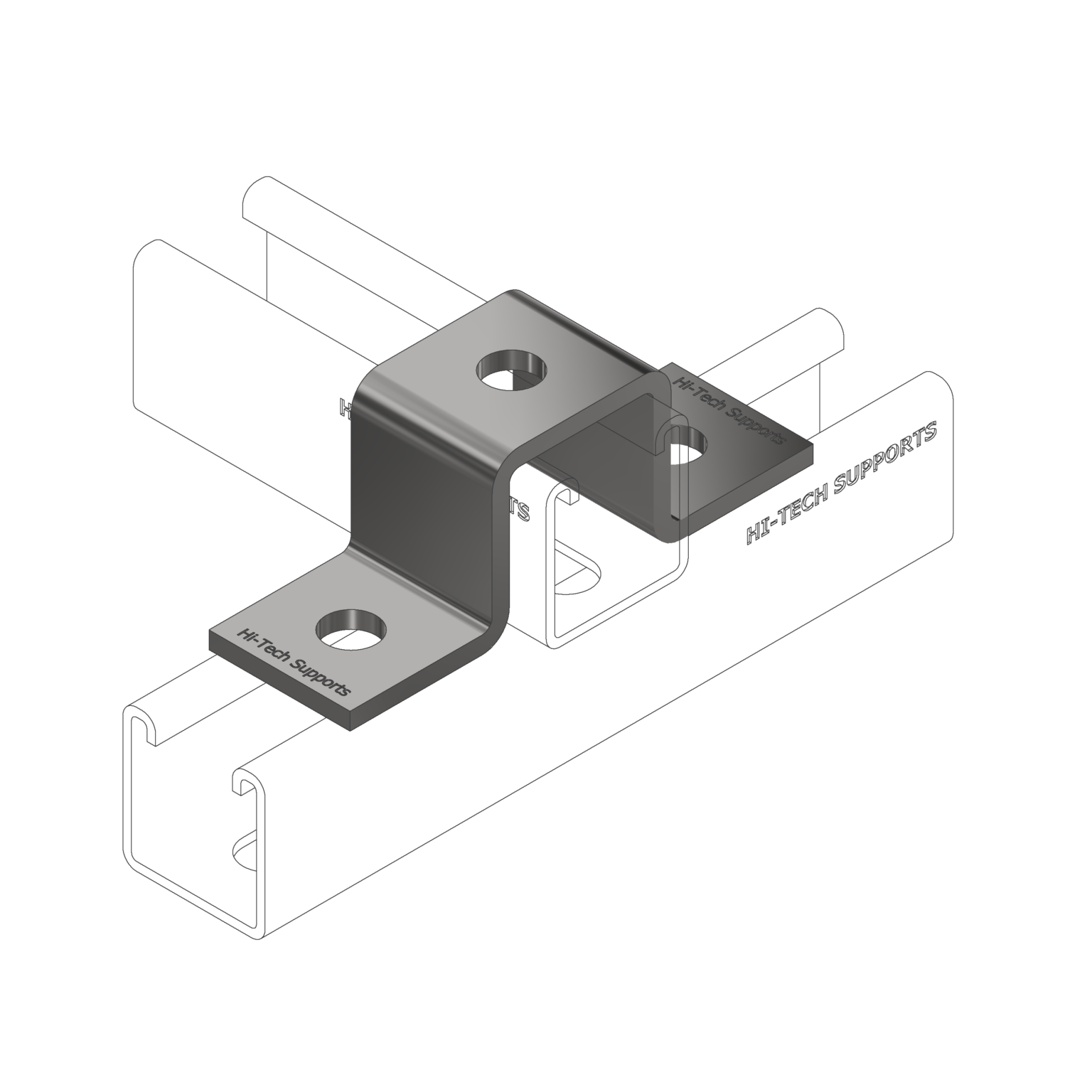

The Square U Bracket is used as a modular arrangement to attach 041 channels.
Material Specification
Mild Steel
Surface Finish
Electro-Galvanised / Hot Dip Galvanised
Naming Nomenclature
(E.g. HTSUB041)
| - HTSUB | : Hi-Tech Square U Bracket |
| - 041 | : Channel Size |

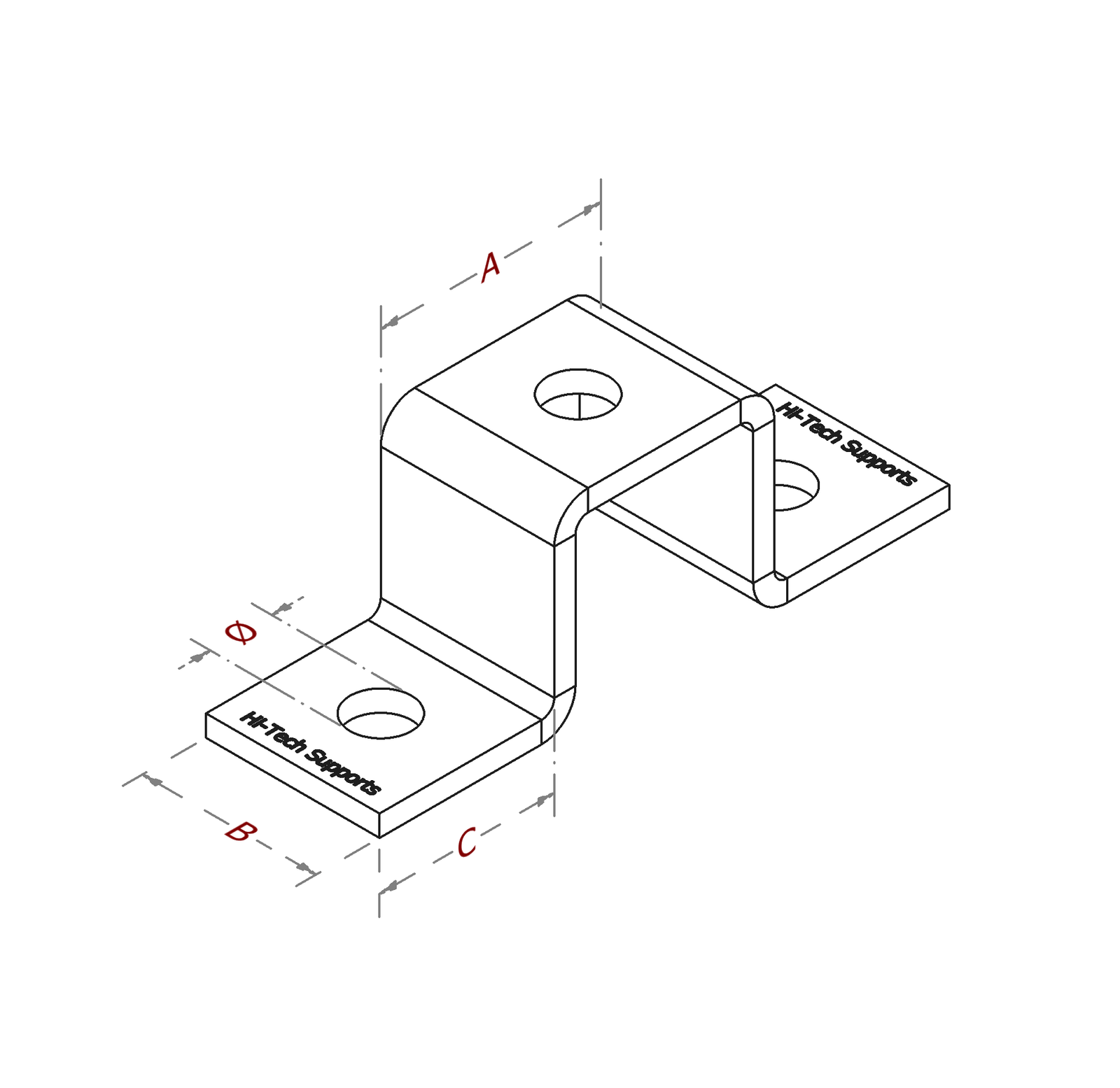

Technical Specifications
| Model No. | A | B | D | Ø |
|---|---|---|---|---|
| (mm) | (mm) | (mm) | (mm) | |
| HTSUB041 | 52 | 40 | 47 | 14 |
