041 Square Channel Washer
HTSQW04110

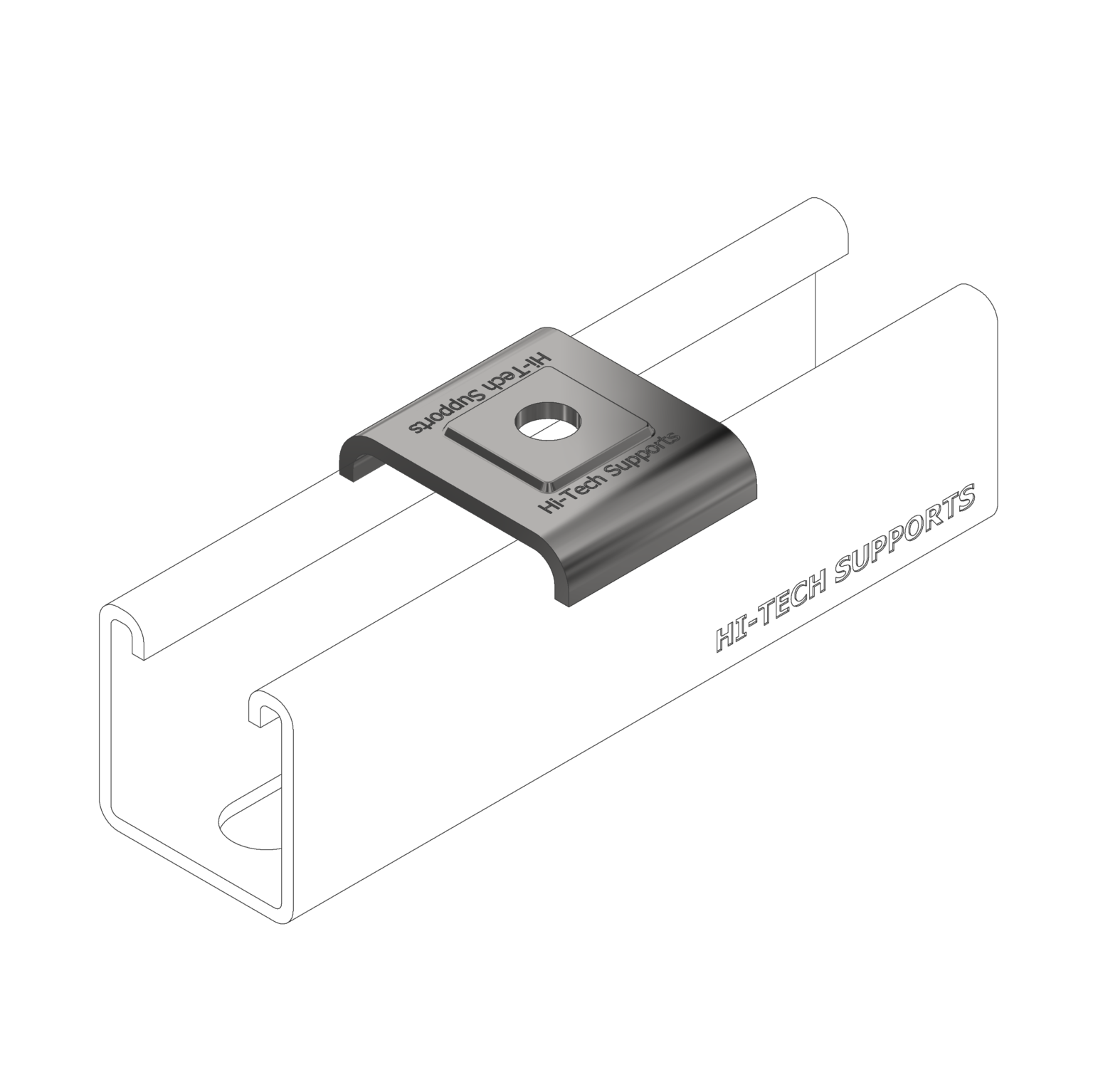

Channel Washer is used on the open face of the 041 channel to suspend threaded rod/ threaded studs.
Material Specification
Mild Steel
Surface Finish
Electro-Galvanised / Hot Dip Galvanised
Naming Nomenclature
(E.g. HTSQW04110)
| - HTSQW | : Hi-Tech Square Washer |
| - 041 | : Channel Size |
| - 10 | : Hole Size |
Technical Specifications
| Model No. | A | B | Ø |
|---|---|---|---|
| (mm) | (mm) | (mm) | |
| HTSQW04110 | 49 | 40 | 10 |
