041 Cantilever Bracket
HTCNB041

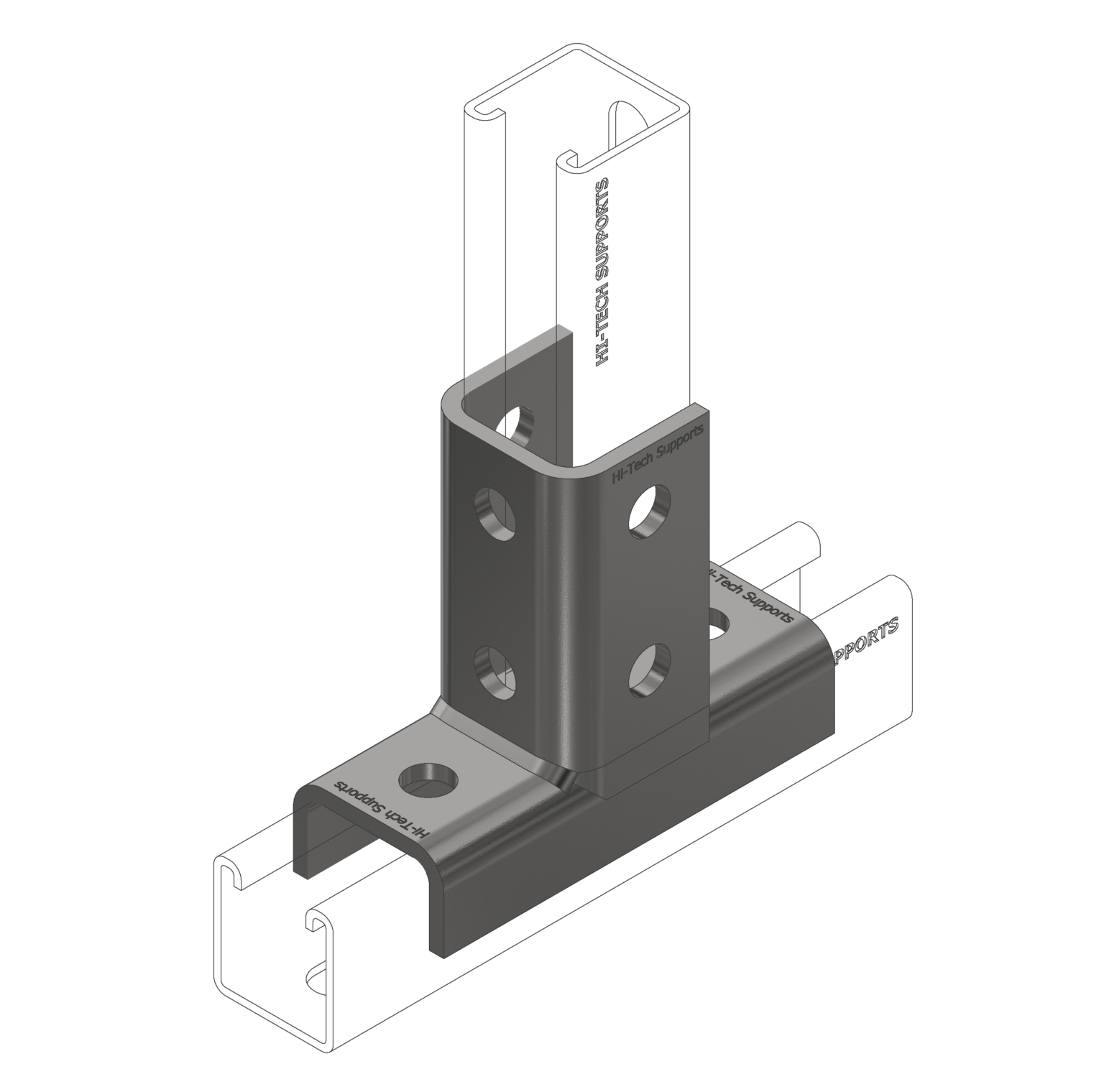

041 Cantilever Bracket is used as a modular arrangement to attach 041 channels perpendicular to each other
Material Specification
Mild Steel
Surface Finish
Electro-Galvanised / Hot Dip Galvanised
Naming Nomenclature
(E.g. HTCNB041)
| - HTCNB | : Hi-Tech Cantilever Bracket |
| - 041 | : Channel Size |

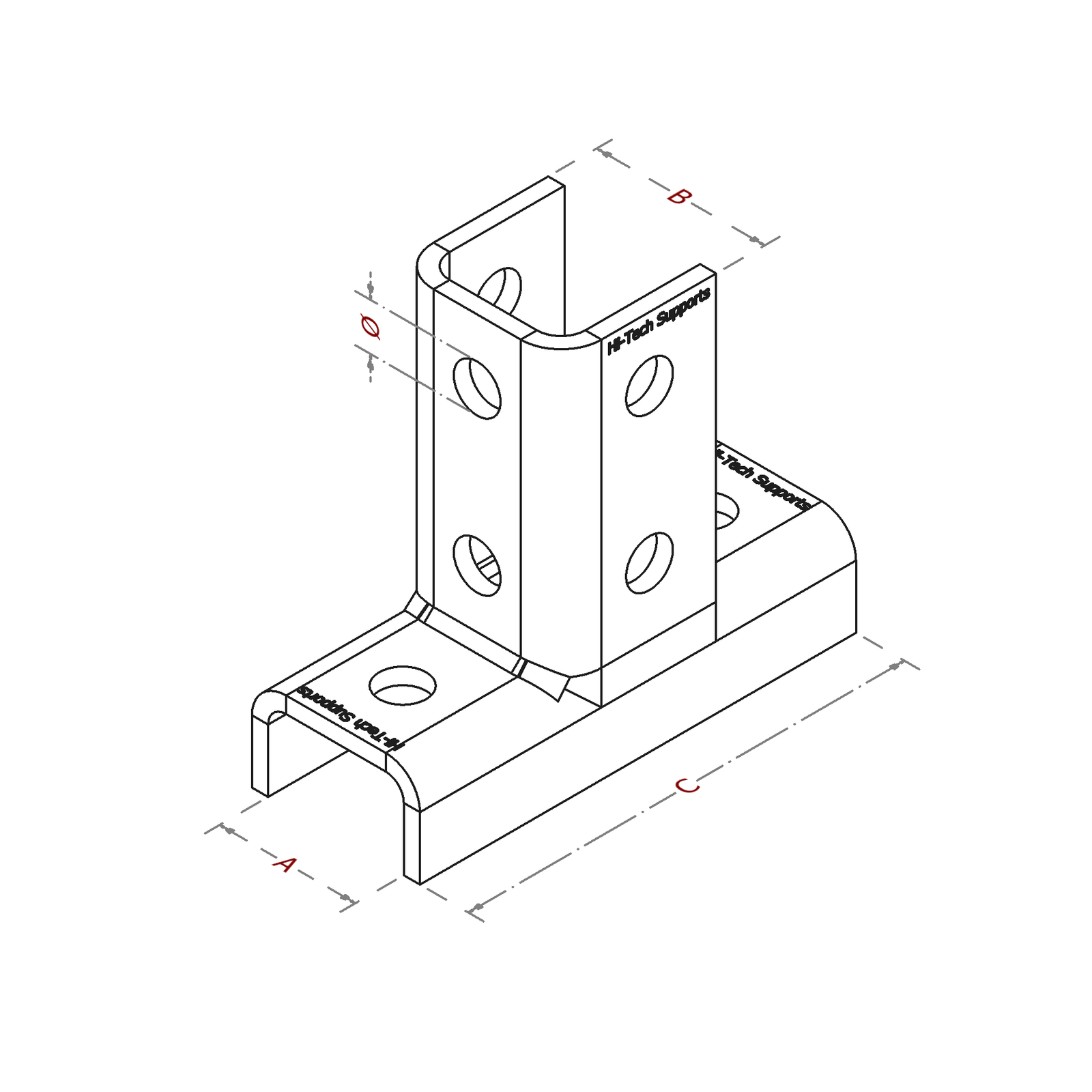

Technical Specifications
| Model No. | A | B | C | Ø |
|---|---|---|---|---|
| (mm) | (mm) | (mm) | (mm) | |
| HTCNB041 | 42 | 42 | 135 | 14 |
